How Is a Garden Surveyed? Modern Topographical Survey Techniques Explained

In this article, we delve into the latest techniques surveyors use for topographical surveys, the types of equipment involved, how survey results are presented, and even a bit of history – including where the old “trig” systems of surveying began and whether they’re still used as datum points today.

What Is a Garden Topographical Survey?

A topographical survey (or “topo survey”) of a garden is a detailed, scaled map of your outdoor space, showing all key features and ground levels. Surveyors record the position of things like house walls, fences, trees, patios, outbuildings, changes in ground elevation, and utility covers. Essentially, it’s the process of gathering precise measurements of the land and everything on it. The result is often a 2D plan (and sometimes a 3D model) that serves as the foundation for designing landscape changes, planning construction, or solving drainage issues.

For instance, if you’re installing a new terrace or doing a garden makeover, a topographical survey will tell your designer or engineer exactly where existing elements are and how the land slopes. It’s critical to know if there’s a 30 cm drop between the back door and the lawn, or the exact location of that large oak tree in relation to the house. Surveying ensures no guesswork – everything is measured to real-world coordinates and elevations. Professionals typically conduct such surveys at the start of a project, because accurate site data prevents costly mistakes (like misplacing a retaining wall) and delays later.

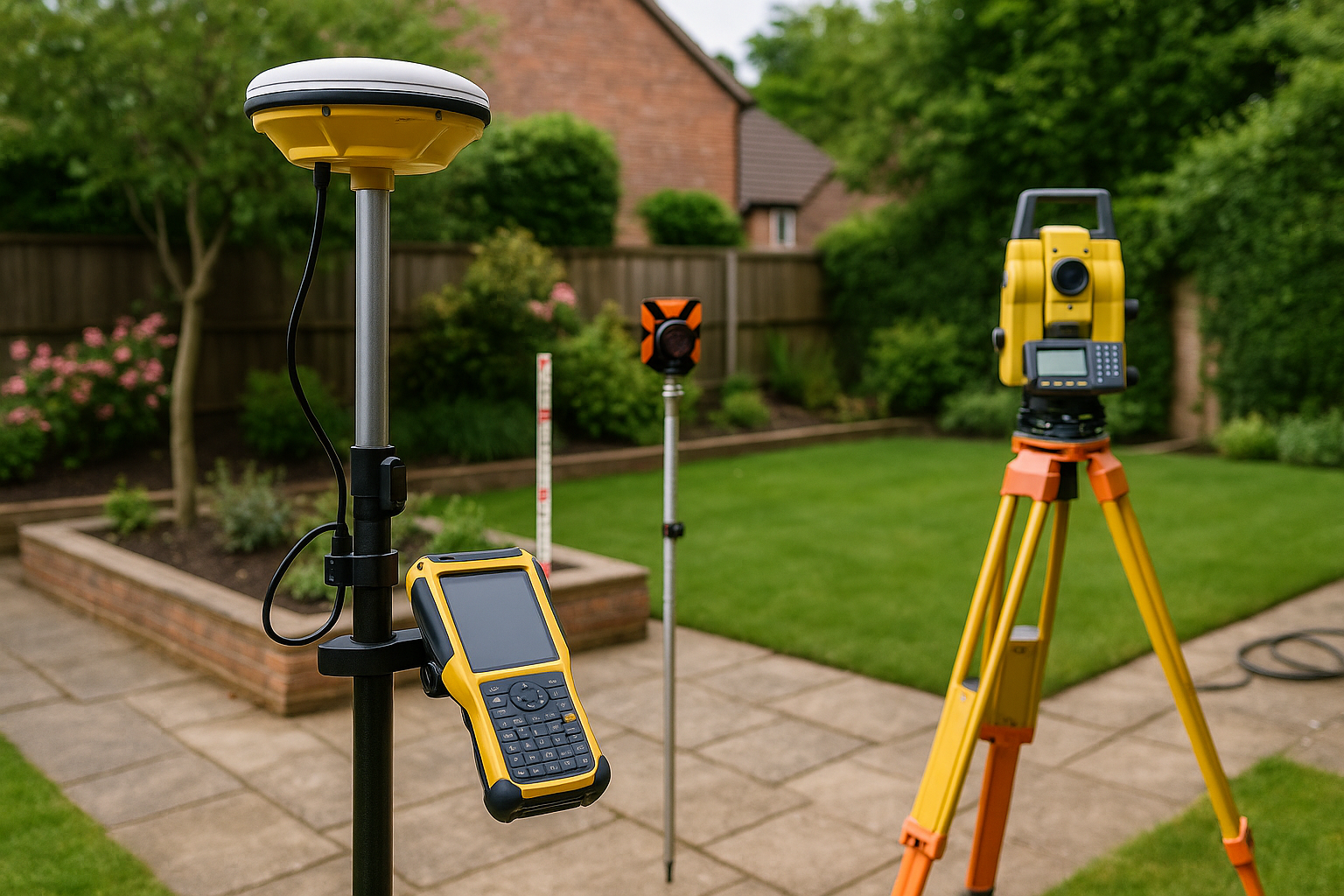

Modern Techniques and Equipment Used in Garden Surveys

Surveying has come a long way from the days of tape measures and sketch pads. Today, surveyors employ advanced technology to capture data efficiently and with centimeter-level accuracy. Here are the latest techniques and tools commonly used to survey gardens and similar sites:

Total Stations

The workhorse of modern surveying is the total station, a device that combines a digital theodolite (which measures angles) with an electronic distance meter (which uses a laser or infrared beam to measure distances). When set up on a tripod over a reference point, a total station can precisely calculate the 3D position of any target point by measuring the angle and distance to it.

For a garden survey, a surveyor will move around with a reflective prism on a staff (or use the instrument in reflectorless mode) and shoot points on all the features: corners of the house, fence lines, spot heights on the lawn, etc. Many total stations today are robotic – they can track the prism and even be operated by one person via remote control. This speeds up data collection. The instrument’s onboard computer records each point with codes (e.g., “TC” for top of curb, “TR” for tree) so that back in the office, the data can be plotted easily. Total stations are highly accurate for local measurements – typically a few millimeters precision – which is more than sufficient for garden scales.

GPS/GNSS Surveying

For larger sites or when tying the survey into national map coordinates, surveyors use GNSS receivers (often just called GPS, though modern units use not only the US GPS satellites but also systems like GLONASS, Galileo, etc., hence “GNSS”). GNSS survey equipment looks like a pole with a small dome antenna on top. By communicating with satellites, a rover unit can determine its position on Earth’s surface.

Surveyors often use RTK (Real-Time Kinematic) GNSS, which can achieve centimeter accuracy by referencing a network of base stations. In practice, the surveyor might set up a base receiver on a known point or connect to a paid service (like a national network) to get real-time corrections, and then walk the site with a rover unit. GNSS is fantastic for getting coordinates over large areas without needing line-of-sight between points (unlike total stations which require a clear view).

However, in a small garden with lots of tree cover or very close buildings, GNSS signals might be obstructed or less accurate. Often, surveyors will use GNSS to establish key reference points (for instance, to tie the survey into the Ordnance Survey National Grid reference system), then use total stations for detailing the garden features. Essentially, GNSS brings in the “big picture” location, and the total station handles the fine detail.

3D Laser Scanners

For highly detailed surveys or complex garden features (maybe ornate facades, rockeries, or irregular structures), laser scanning technology can be employed. A 3D laser scanner is a device that rapidly fires laser beams in a 360° arc, capturing millions of points (a point cloud) that represent surfaces of objects.

In a garden, a scanner could capture the exact shape of a winding staircase, the spread of tree branches, or the undulations of a pond edge within minutes. The result is a dense set of data points that can be used to create very accurate models or drawings. Scanners are often used when architectural elements need recording or when the highest precision is needed for every nook and cranny.

They require line-of-sight to the surfaces and produce large data files, so for a simple open lawn and a couple of walls, a total station can suffice. But for a heritage garden with complex structures, scanners provide an unparalleled level of detail. The latest surveying practices might integrate scanning with total station surveys – for example, scanning a house’s exterior to get all door and window positions while using traditional shots for the garden terrain. It’s part of the surveyor’s toolkit to decide what’s needed based on the project.

Drones (UAVs) and Photogrammetry

A newer technique entering even garden-scale surveying is the use of drone surveys. Drones equipped with cameras can fly over a property to take aerial photographs from multiple angles. Using a process called photogrammetry, software can turn these overlapping photos into a scaled 3D model or orthographic overhead image.

For larger gardens or estates, a drone can capture the whole area quickly, including hard-to-reach spots (like a steep bank or a water feature). The output is often a high-resolution aerial image map and a 3D point cloud similar to laser scanning. However, for very small gardens or those with lots of tree canopy, a drone might not be as useful. Still, drones are part of the latest techniques and might be used to complement ground surveying – for instance, providing a detailed overhead photo onto which surveyed points are draped, helping clients visualize the context. Survey companies increasingly offer UAV mapping services alongside traditional surveying.

Levels and Other Tools

Traditional leveling tools like automatic or digital levels are used specifically to transfer elevations (heights) across a site. In a simple garden survey, a surveyor might take a series of spot levels using a level and staff, especially if only elevation differences are needed (e.g., checking how much a garden slopes).

Nowadays, since total stations and GNSS can measure elevation too, separate leveling is less often needed except for very high-precision height checks. Surveyors also use measuring tapes or laser distance meters for quick measurements (like checking a gate width or roof eave height).

The combination of these modern tools means a topographical garden survey can be done rapidly and accurately. A knowledgeable land surveyor will choose the most efficient technology for the job – for example, a flat open site might be done mostly with GNSS, whereas a densely vegetated garden would lean on total stations or even old-school tape for hidden corners.

From Field to Plan: How Survey Results Are Presented

Once the surveyors have collected all the measurements from your garden, the next step is processing and presenting the data. The raw data – coordinates (northings, eastings) and elevations of each point, plus codes or descriptions – gets imported into surveying or CAD software. There, it’s turned into a map that’s much easier to understand than a list of numbers!

Typically, the deliverable for a garden topographical survey is a scale plan drawing (for example, at 1:100 scale) showing the layout of the land. Key features are depicted: house outlines, fences, trees shown with canopy spread, spot heights or contour lines to indicate ground levels, and so on.

Survey results today are almost always provided in digital format. The standard is an AutoCAD DWG file or similar, which architects and designers can directly use as the base for their plans. The client might also get a PDF or printed version for easy viewing. In some cases, especially for more technical projects, a 3D model might be delivered – either as a 3D CAD file or a point cloud.

It’s worth noting that survey data can be presented in any coordinate system or datum required. Many garden surveys for private use are done on a local, arbitrary coordinate system (for instance, the surveyor might set an arbitrary origin point like 5000,5000 in meters just to avoid negative coordinates). However, increasingly, clients and designers want surveys tied to the national coordinate system so they overlay correctly on Ordnance Survey maps or satellite imagery.

In the UK, that means using the Ordnance Survey National Grid for horizontal positioning and Ordnance Datum (Newlyn) for vertical heights. Surveyors can achieve this easily now by using GNSS to get real-world coordinates during the survey. In the past, doing so required finding local benchmarks and trig points (more on that in a moment) – but now it’s often a standard part of the process.

So, when you receive a topographic survey drawing, look for a legend or notes indicating what the symbols mean. You’ll typically find a north arrow, scale bar, and a statement of the coordinate system or datum used. Features will be labeled – for example, a tree might have a label “Oak (0.3)” indicating a 0.3 m trunk diameter oak. Contour lines, if present, will show elevation numbers, and spot heights might mark key points like door thresholds, paving corners, or lawn levels.

In summary, surveyors turn field measurements into a clean, understandable map that you or your design team can use. The output can be tailored to your needs – for example, legal plans for boundaries or detailed landscape base maps for designers.

A Brief History of Trig Points: From Triangulation to GPS

You might have heard of trig points (triangulation points) – those concrete pillars dotting hilltops across the UK – and wonder what role they played and if they matter today. Triangulation was the classical surveying method that formed the foundation of mapping in the 19th and 20th centuries. Surveyors created a network of interconnected triangles across a region. By measuring angles from one high point to others and knowing one baseline distance, they could calculate all the other distances by trigonometry.

In the UK, the Ordnance Survey began the Retriangulation of Great Britain in 1935, led by Brigadier Martin Hotine. He designed the now-iconic trig pillar (Hotine Pillar). Over 6,500 of these were built on hilltops to serve as stable mounts for theodolites. Surveyors would trek to each pillar, set up instruments, and take angular measurements to neighboring pillars visible on the horizon, building a web of triangles that defined the country’s mapping network.

The result of this monumental effort was the OSGB36 datum and the National Grid coordinate system – still the basis for UK mapping today. The first trig pillar was built in Cold Ashby, Northamptonshire, in 1936, and many remain visible today as relics of that great survey.

Do Surveyors Still Use Trig Points Today?

Not in the same way as before. The old trig pillar network has been replaced by satellite-based positioning. Modern surveyors use GPS/GNSS technology and the OS Net (a network of permanent GNSS receivers) to obtain coordinates in National Grid and Ordnance Datum height almost instantly.

Whereas older surveys required line-of-sight between trig points and extensive fieldwork, GPS makes it possible to determine your position anywhere, even in a small garden, using satellite data. Trig points are no longer needed as physical stations for most work, though their coordinate data still underpin the OS mapping framework.

Today, surveyors connect directly to the OS Net to get precise coordinates. The old trig pillars themselves are largely historical monuments, cherished by walkers but rarely used in modern surveying.

Present Day Datum: What Surveyors Use Now

The modern replacement for the trig and benchmark network is called OS Net, a continuously operating GNSS network that provides real-time coordinate corrections. Surveyors connect to it via the internet and can achieve centimeter accuracy instantly.

Surveyors still apply rigorous quality control, often setting up temporary reference points (control stations) on-site and double-checking measurements. They may use GPS and total stations together, closing measurement loops to ensure consistency.

If a survey is tied to the National Grid, your garden’s plan is effectively positioned in real-world coordinates – any mapping, planning, or utility data will overlay correctly. Even if a local grid is used for convenience, the internal precision is excellent.

Conclusion

Surveying a garden today is a blend of time-honoured principles and cutting-edge technology. The goal remains the same: to measure and map land accurately. A modern garden survey may use a robotic total station, GNSS positioning, and even drones to capture every corner with precision.

Understanding how your garden is surveyed helps you appreciate the science behind those neat, accurate drawings your designer uses. While trig pillars now stand as monuments of surveying history, their legacy endures in the coordinate systems and standards used today.

When it comes to your own garden, modern surveying offers speed, accuracy, and digital convenience — ensuring every measurement aligns perfectly with reality.
